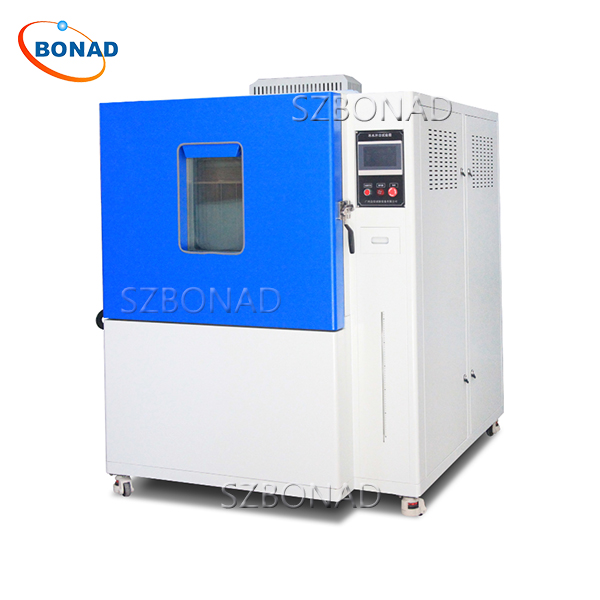

    Ice Water Thermal Shock splash water Test Chamber
    Name:Ice Water Thermal Shock splash water Test Chamber
    Type:BND-BSFJ-1000L
    Manufacturer:This test simulates a thermal shock induced by ice water and applies to products in the splash areas of the vehicle. The purpose of this test is to simulate ice water splashing over a hot system/ component.
    Product Description:

    ISO 16750 Ice Water Thermal Shock splash water Test Chamber

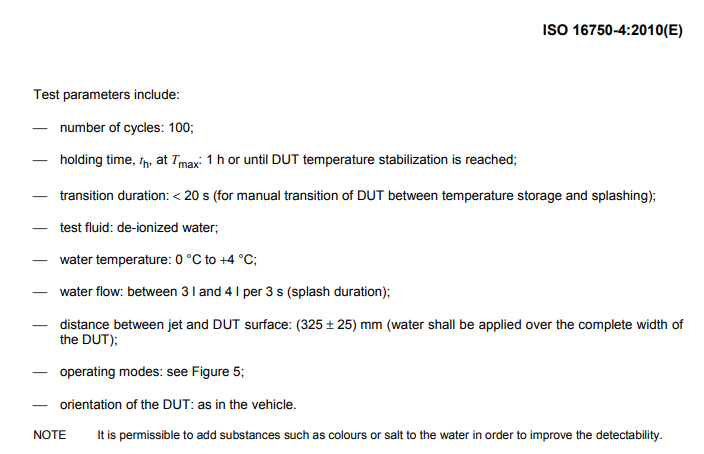

    Test Purpose:
    This test simulates a thermal shock induced by ice water and applies to products in the splash areas of the vehicle. The purpose of this test is to simulate ice water splashing over a hot system/component. This happens when driving on wet roads during the winter. Failure modes are mechanical cracking of materials or seal failures caused by different temperature expansion coefficients. An additional failure mode not addressed in 5.3.2.1 is a loss of tightness and the intrusion of water into the system/component.


    Test standards:

    ISO 16750-4: 2006/GB/T 28046.4-2011


    Structural parameters

    External dimensions

    About 1500*deep 1900*high 2250 mm

    Inner box size

    About 1000*Inlet depth 1000*height 1000 mm

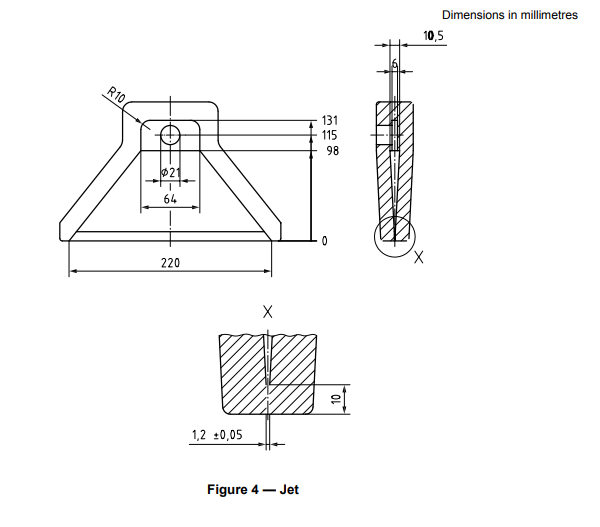

    Number of spray holes

    1 sewing spray torion;

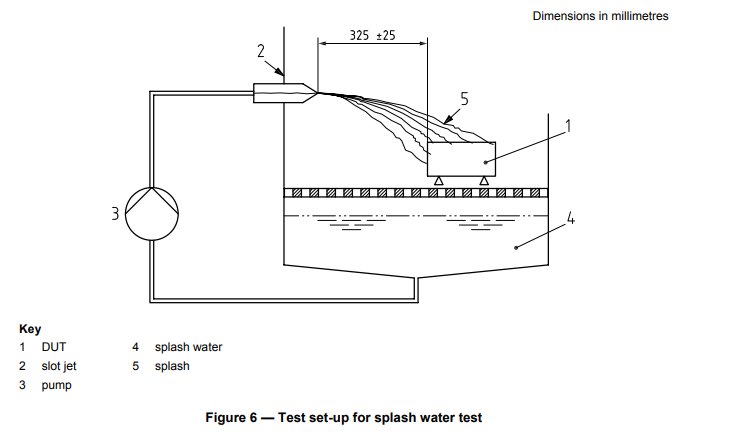

    Spraying position

    On the right side of the inner box

    Spirit and sample distance

    325 ± 25mm (manual adjustment)

    Function parameters

    High temperature room temperature range

    RT+10℃~150℃

    Heating rate

    RT+10℃~150℃≤45min

    Water temperature control range

    (0~+4)℃

    Cooling rate

    25℃~2℃≤60min

    Water spray

    (3~4)L/3S

    Test liquid values

    Remove water or+3%Arizona fine dust

    Spray time per cycle (30 minutes)

    3s, interval time: interval time: 29m57s (touch screen setting)

    Number of cycles

    100 times (touch screen setting)

    Electrical parameter

    Device power supply

    380V/50Hz, three -phase and five -line system

    equipment power

    12.0KW

    Safety protection function

    Leakage protection, water deficiency protection, short circuit protection, phase sequence protection, heat overload protection
